Hot Pressed Technology Long-Life Marble Segment for Cutting Stone

Name: Hot Pressed Technology LongLife Marble Segment for Cutting Stone
Brand: Linxing
Price: 1.54 USD

Hot Pressed Technology Long-Life Marble Segment for Cutting Stone Manufactures

Warranty : None

Customized support : OEM, ODM, OBM

Place of Origin : Jiangxi, China

Brand Name : Linxing

Model Number : M71788

Application : Cutting Marble Stone

Feature : Long Lifespan

Shape : Arc-shape

Color : Yellow

Material : Diamond + Metal Powder

Technology : Hot Pressed Sintered Diamond Segment

Grade : A-Grade

Packing : Carton Packing, Box Packing

Payment : L/C,T/T,W/U etc.

MOQ : 200 Pieces

Packaging Details : Per box include 100 pieces Packed by Plastic paper Box, Container by board With LINXING LOGO Carton, etc.

Port : Shanghai, Shenzhen, Ningbo, Xiamen, etc

Supply Ability : 1000000 Piece/Pieces per Month High Quality Diamond Segment

MOQ : 200 pieces

Price : $1.54/pieces 200-999 pieces

Contact Now

Diamond Segment For Marble

Hot Pressed Technology Long-Life Marble Segment for Cutting Stone

Product Features
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long lifespan with high cost-effective.
4. Segment is easy for opening

Product Specification

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.

Hot Pressed Technology Long-Life Marble Segment for Cutting Stone

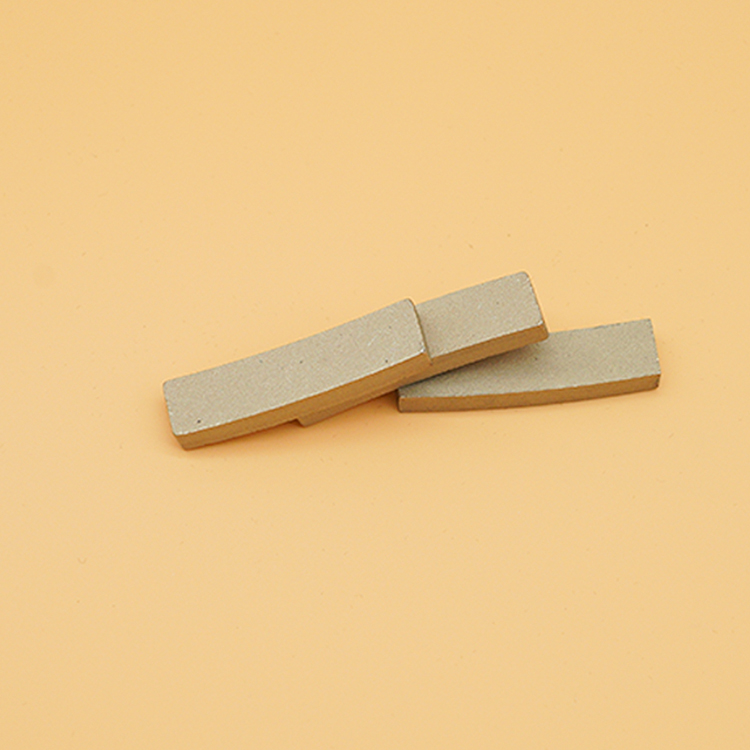

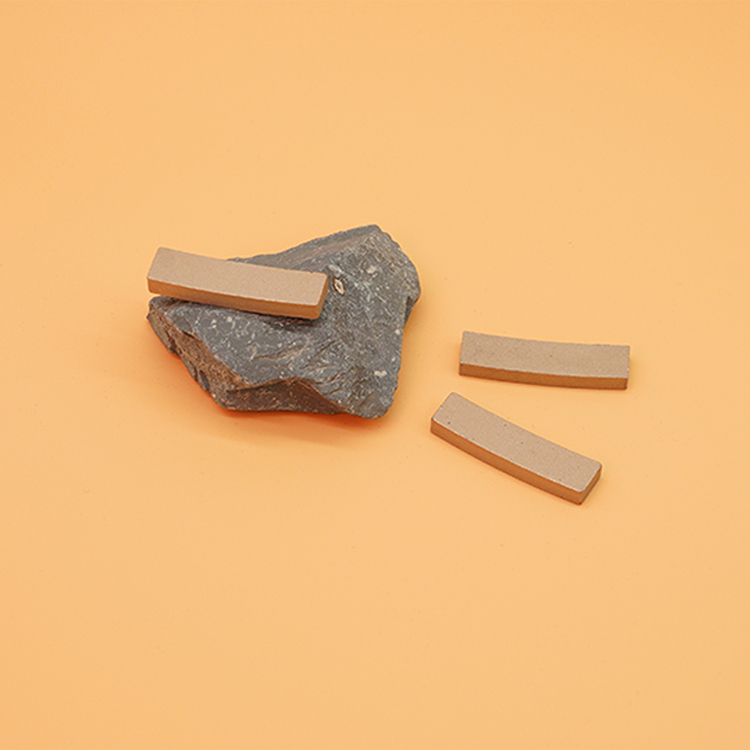

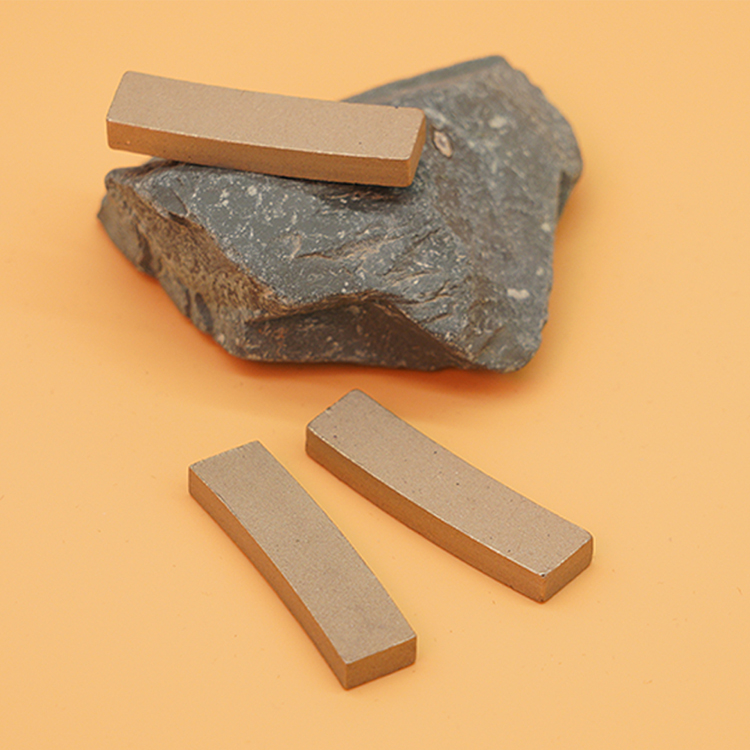

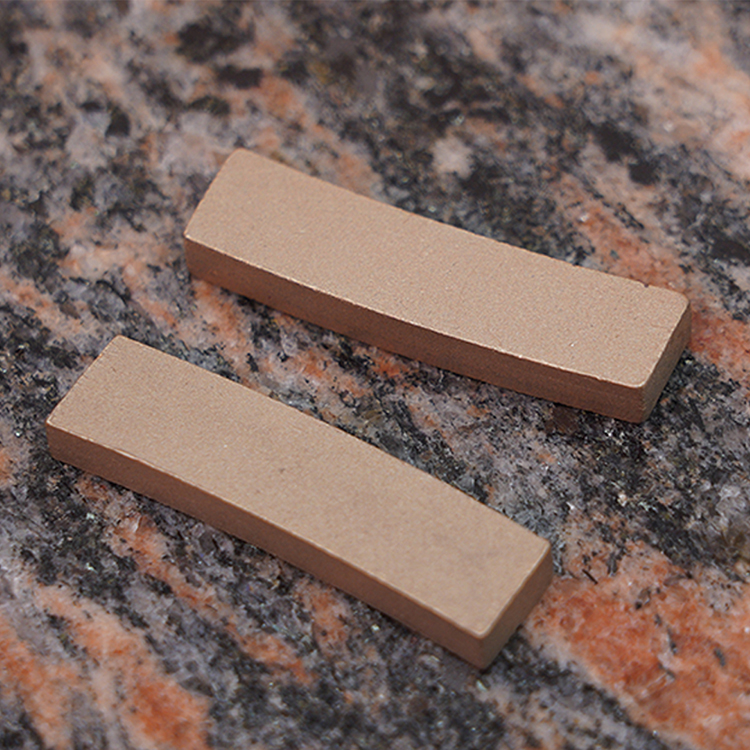

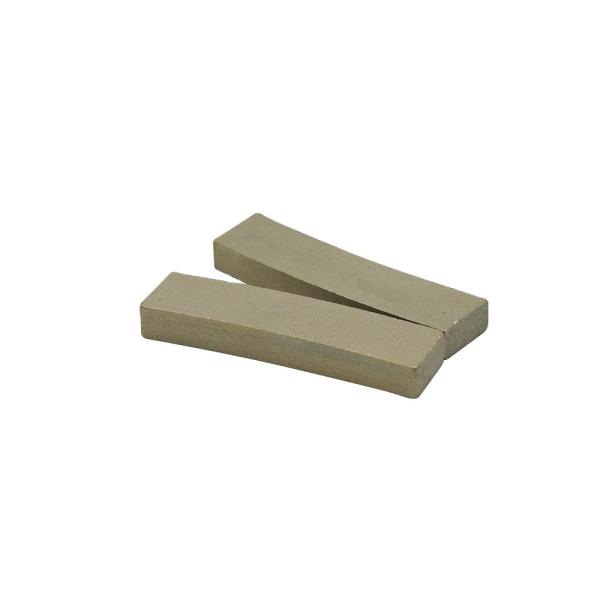

Hot Pressed Technology Long-Life Marble Segment for Cutting Stone Images
